Kirby 4.1.2

Files section

List, edit and upload files

The files section can be used to show any combination of files for the current page or any other page in your site.

Example

/site/blueprints/pages/project.yml
title: Project

sections:
  gallery:
    label: Gallery
    type: files
    template: gallery

Section shortcuts

For simple sections that are only used once per blueprint, you can use shortcuts. In its most basic form, a files section consists of the section type as name, and true as its value.

sections:

  files: true

This will add a files section with all default properties.

These shortcuts can be extended with other section properties as needed, for example:

sections:

  files:
    label: My Files
    template: cover

Keep in mind that the same section name can only be used once per blueprint.

Section properties

The files section has multiple options to control what kind of files should be displayed, how they should be displayed and what happens if a new file is uploaded.

Name Type Default Description
columns array Columns config for layout: table
empty Sets the text for the empty state box
flip bool false Enables/disables reverse sorting
headline The headline for the section. This can be a simple string or a template with additional info from the parent page.
help Sets the help text
image Image options to control the source and look of preview
info Optional info text setup. Info text is shown on the right (lists, cardlets) or below (cards) the title.
label The label for the section. This can be a simple string or a template with additional info from the parent page.
layout string list Section layout.
limit int 20 Sets the number of items per page. If there are more items the pagination navigation will be shown at the bottom of the section.
max int Sets the maximum number of allowed entries in the section
min int Sets the minimum number of required entries in the section
page int Sets the default page for the pagination. This will overwrite default pagination.
parent string Sets the query to a parent to find items for the list
query string Filters pages by a query. Sorting will be disabled
search bool false Enable/disable the search in the sections
size string auto The size option controls the size of cards. By default cards are auto-sized and the cards grid will always fill the full width. With a size you can disable auto-sizing. Available sizes: tiny, small, medium, large, huge, full
sortBy string Overwrites manual sorting and sorts by the given field and sorting direction (i.e. date desc)
sortable bool true Enables/disables manual sorting
template string Filters all files by template and also sets the template, which will be used for all uploads
text {{ file.filename }} Setup for the main text in the list or cards. By default this will display the filename.

Label

The label will be displayed above the files section. You can pass a simple headline as a string or you can provide translations for multiple languages, if you have an international editing team.

Single language

label: Gallery

Multiple languages

label:
  en: Gallery
  de: Galerie
  es: Galería

Placeholders

You can inject information from the current page into the label with template placeholders using our query language.

label: "{{ page.title }} Gallery"

Layout

The files can either be displayed as a simple list or as cards with preview images. The list view is the default view.

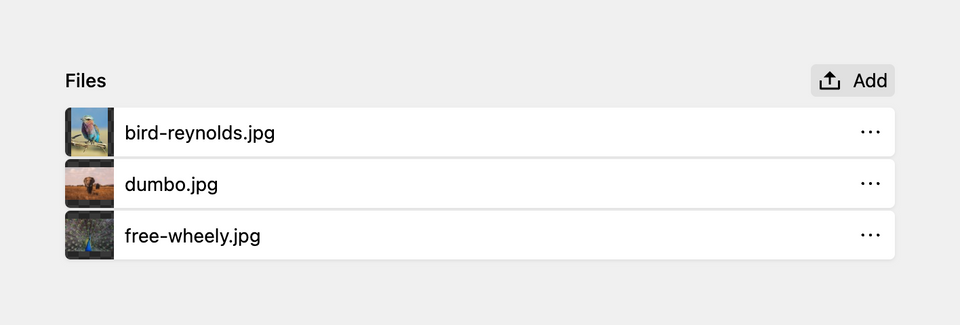

List layout (default)

The list layout is perfect for file types without thumbnails like PDFs, excel files, or any other docs. It can also be quite helpful for long galleries that would take up too much space as cards.

layout: list

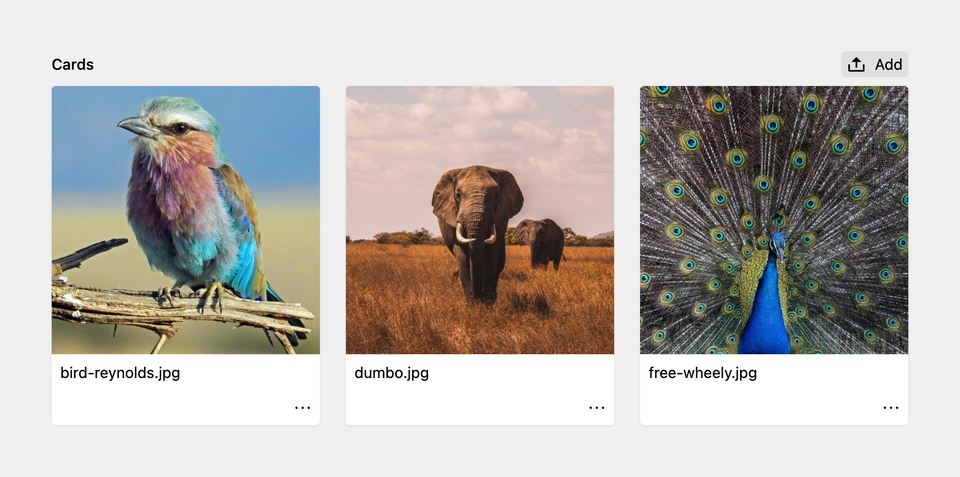

Cards layout

The card layout is great for all kinds of images.

layout: cards

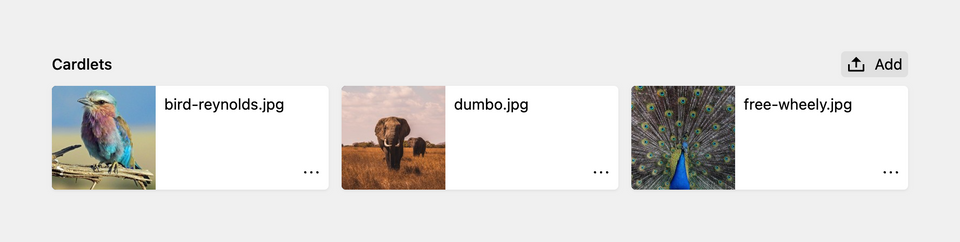

Cardlets layout

The cardlets layout is great for nice visual previews of files, while your text content is still representend decently.

layout: cardlets

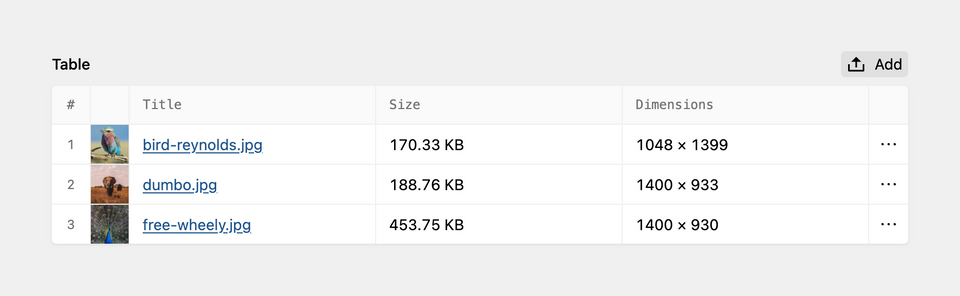

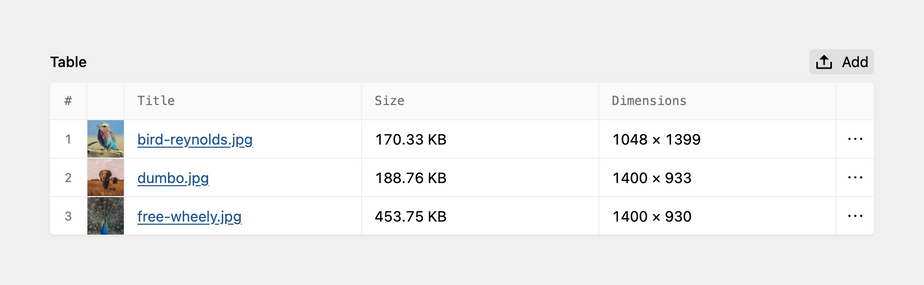

Table layout

The table layout has the highest information density. Columns can be fully customized and make it perfect if you need to show multiple values at once for better overview and scannability.

layout: table

The table layout will show the preview image together with a title and info column based on your text and info settings. You can switch off those automatic columns with image: false, text: false and info: false if you want to introduce your own columns.

Columns

Custom table columns can be defined with the columns option.

layout: table
columns:
  alt: true
  dimensions: true

Each column can be customized with additional settings:

Label
layout: table
columns:
  alt:
    label: Alt Text
Translated label
layout: table
columns:
  alt:
    label:
      en: Alternative Text
      de: Alternativ Text
Alignment

Text alignment can be left (default), center or right.

layout: table
columns:
  dimensions:
    label: Dimensions
    align: right
Width

The column width can be set via the width property. You can use the usual fractions:

layout: table
columns:
  dimensions:
    label: Dimensions
    width: 1/6
Value

By default, the table cells contain the field value matching the column name. You can customize the value with a string template.

layout: table
columns:
  date:
    label: Date
    value: "{{ file.date.toDate('d.m.Y') }}"
HTML

Values are converted to safe HTML by default. This is the most secure way to handle content in your Panel. If you know what you are doing and you want to render HTML in a table cell, you can use the html option to stop HTML from being auto-encoded.

layout: table
columns:
  html:
    label: HTML
    html: true
    value: "{{ file.someSafeHTML }}"
Mobile

Set the mobile option to true for a column to be visible in the mobile view.

layout: table
columns:
  alt:
    label: Alt
    mobile: true
Type

So far we offer three different column types, you can use to improve the preview of your data.

type description
text This is the standard column type
url If the value is a URL, you can convert the value to a link with this type
tags If the value is a comma-separated list of values or an array, you can use this type to show the value as tags.

File information

You can fine-tune the display text and additional information for every file in the list with the text and info options.

text

By default the filename is shown in the list for every file. You can use our template syntax with query language to fetch any information from the file and display that instead of the filename.

text: "{{ file.alt }}"

info

If you want to display additional information for each file, like a caption, category or any other field value, you can use the template syntax with query language in the info option.

info: "{{ file.dimensions }}"

Restricting uploads to certain file types

If you want to restrict what types of files can be uploaded to the given section, assign a file template using the template property. In your file template, set the accept option. See the docs about file blueprints.

By default, Kirby supports the following files types.

To upload file types not supported out of the box by Kirby, you can register new file types with the fileTypes extension in a plugin.

Preview images

The (preview) image for each item in the list is configured with the image option:

cover

Whether or not the image will cover the available space.
Options: true, false (default)

image:
  cover: true

Examples

cover: true cover: false

ratio

A freely definable image ratio.

image:
  ratio: 16/9

Examples

ratio: 2/3 ratio: 1/1 ratio: 3/2 ratio: 16/9

You are not limited to the example ratios above. In fact, Kirby calculates the ratio for you as long as you enter it in the format a/b

back

Set an image background.
Options: pattern (default), black, white

image:
  cover: true
  ratio: 1/1
  back: black

Examples

back: pattern back: black back: white

Empty state

With the empty option you can define the message which is displayed when no files are listed in the section.

empty: No documents yet

Filtering files

parent

By default, the current page is being used as the parent to find files for the list. With this option, any page on your site can be the parent of the section.

parent: site.find("galleries").first
Since 4.0.0

query

The files section supports a query option to filter files using our query string syntax. Manual sorting will be disabled for sections with a query.

images:
  type: files
  label: Images
  query: page.images
  uploads: image
documents:
  type: files
  label: Documents
  query: page.documents
  uploads: document

Template

You can define which template each file in the list must have. This template option will also be applied to any new file that gets uploaded. Blueprints for file templates can be setup in /site/blueprints/files.

template: cover

In combination with the query property, use the uploads option to set the file blueprint that will be assigned at upload.

Sorting

sortBy

You can sort the list of files by a given field in descending or ascending order.

sortBy: filename desc

You can pass PHP sorting type flags, for example to make sorting work with special language specific characters.

sortBy: filename SORT_LOCALE_STRING
sortBy: filename asc SORT_LOCALE_STRING

The sortBy option will automatically switch off manual sorting.

sortable

You can switch off manual sorting entirely with the sortable option.

sortable: false

flip

Use the flip option to enable/disable reverse sorting (default is false):

sortBy: filename
flip: true

Limits

limit

The limit property sets how many files will be shown per page. If there are more entries in the section, the pagination navigation will be shown at the bottom of the section.

limit: 20

max

You can define a maximum number of files, that will be allowed in this section. After the maximum is reached, the upload button will be hidden and no more files can be uploaded.

max: 10

min

You can also define the minimum number of files, that need to be added in order to make the parent page valid.

min: 2

Conditional sections

Like conditional fields, sections can be shown/hidden based on the value of a given field (i.e. if a toggle is checked, a select field is at a certain option, etc.).

The condition for displaying the section is set with the when option. In the when option you define a field name as the key and the required value of that field. In the following example, the each section type is shown based on a different value of the postType field:

sections:
  content:
    type: fields
    fields:
      postType:
        type: select
        options:
          - Gallery
          - Image
          - Text
  gallery:
    type: files
    template: gallery-image
    layout: cards
    size: tiny
    when:
      postType: Gallery
  image:
    type: files
    template: single-image
    max: 1
    layout: cards
    when:
      postType: Image
  text:
    type: fields
    fields:
      text:
        type: textarea
      tags:
        type: tags
    when:
      postType: Text

Section search is disabled by default. You can use the search option to enable it.

sections:
  gallery:
    type: files
    search: true

Fetching files in the frontend

Through a section, you upload files to a page, either the current page or another parent page. Contrary to a files field, the file does not become part of the content, i.e. it is not referenced in the content file.

If you assign a file template to a particular section, you can filter by this template when fetching files in the frontend.

Assuming a files section like the following which uploads images to the current page and assigns a template called gallery:

sections:
  gallery:
    type: files
    template: gallery

You can then fetch those files in the frontend like this:

<?php $galleryImages = $page->images()->template('gallery'); ?>
<ul>
<?php foreach ($galleryImages as $image): ?>
    <li><img src="<?= $image->url() ?>" alt="<?= $image->alt() ?>"></li>
<?php endforeach ?>
</ul>
