    File blueprints

    Common file blueprints

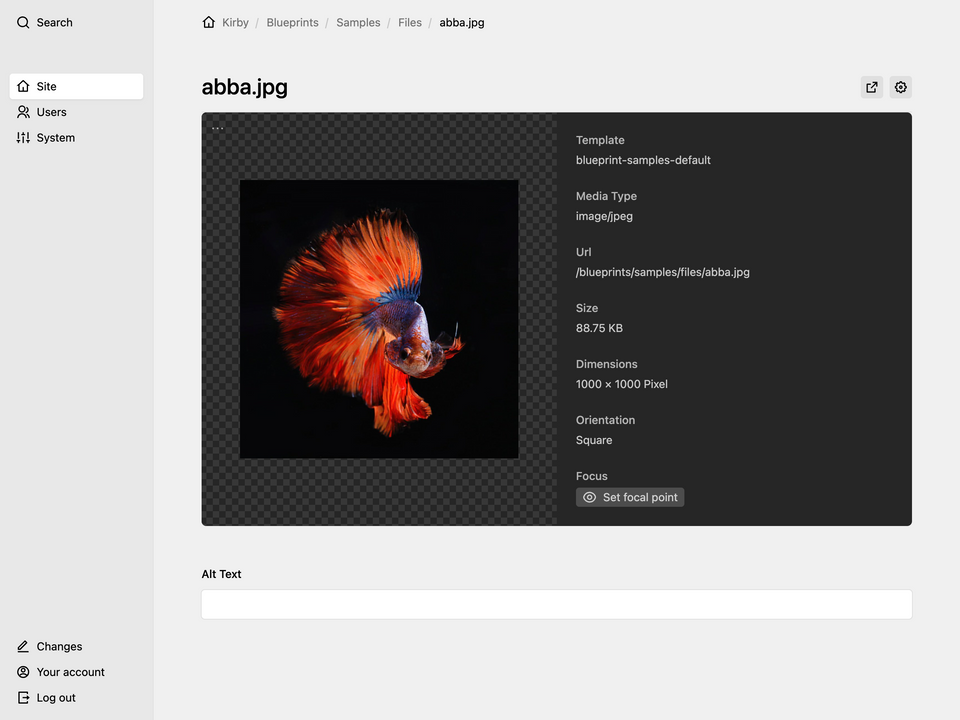

    Simple default blueprint

    /site/blueprints/files/default.yml
    title: Default File

fields:
  alt:
    label: Alt Text
    type: text

    Result

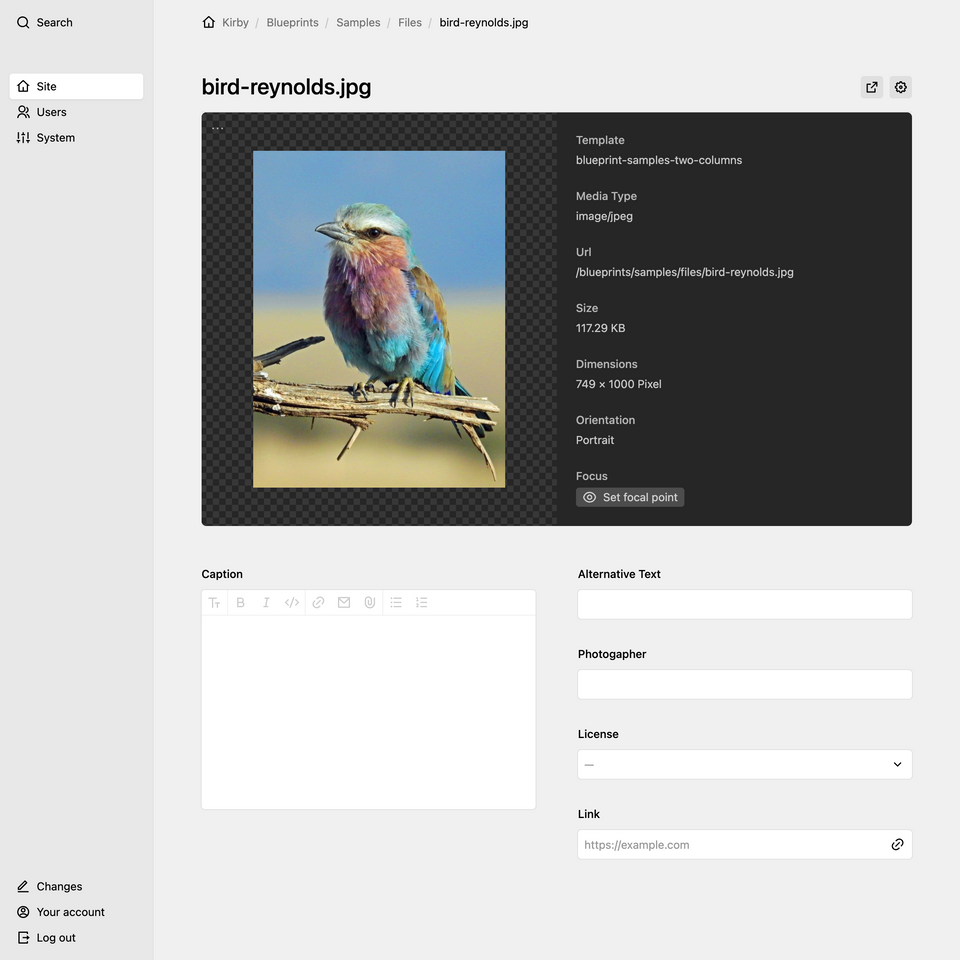

    File blueprint with two column layout

    /site/blueprints/files/image.yml
    title: Image

columns:
  main:
    width: 1/2
    sections:
      content:
        type: fields
        fields:
          caption:
            label: Caption
            type: textarea
            size: medium
  sidebar:
    width: 1/2
    sections:
      meta:
        type: fields
        fields:
          alt:
            label: Alternative Text
            type: text
          photographer:
            label: Photogapher
            type: text
            width: 2/3
          license:
            label: License
            type: select
            width: 1/3
            options:
              - Unsplash
              - CC BY 4.0
              - CC BY-SA 4.0
              - CC BY-NC 4.0
              - CC BY-ND 4.0
          link:
            label: Link
            type: url

    If you only need fields, you can simplify this example as below where we only use fields. It is also possible to use fields within columns without having to define sections.

    Result

    File blueprint with accept option

    The accept option in this example limit file uploads to .jpg and .png images.

    title: Cover

accept:
  extension: jpg, png

fields:
  alt:
    label: Alt Text
    type: text
    width: 1/2
    required: true
  align:
    label: Align
    type: select
    options:
      - left
      - center
      - right
    width: 1/2
  caption:
    label: Caption
    type: textarea

    Result
